| 5454-H32 Marine grade mill finish aluminum |
| 8” X 2” NVE low profile primary with stainless steel ball and cage |
| 3” Discharge with 3” full port poly ball valve, male camlock and dust cap |
| 3” Top nipple with 2” adapter for Tigertail Suction hose |
| (2) 2” Sight eyes in waste compartment |
| Half-moon style hose hook suction hose |
| Hose hook for wash down hose |
| (1) Work light |
| Full length fork lift pockets |
| Conde Super 6 (70 CFM) vacuum/pressure pump |
| Flojet 12v wash down pump, 4.0 GPM |
| 2” Plastic secondary |
| 2” Diamond plate aluminum oil trap |
| 2” Bucket fill with 2” straight male camlock fitting |
| 2” x 30’ Tigertail suction hose with 2” full port 90 degree valve and 30” schedule 80 PVC wand |
| 5/8” x 50’ wash down hose with spray nozzle |
| 12v battery |
| All units come with a kit that contains: (1) 2” 90 male camlock for option to replace straight camlock on bucket fill, (20’) of red 6 gauge battery cable for option to wire battery on unit to truck battery, (1) 2” female camlock to garden hose adapter for fresh water fill through bucket fill |
SC Series

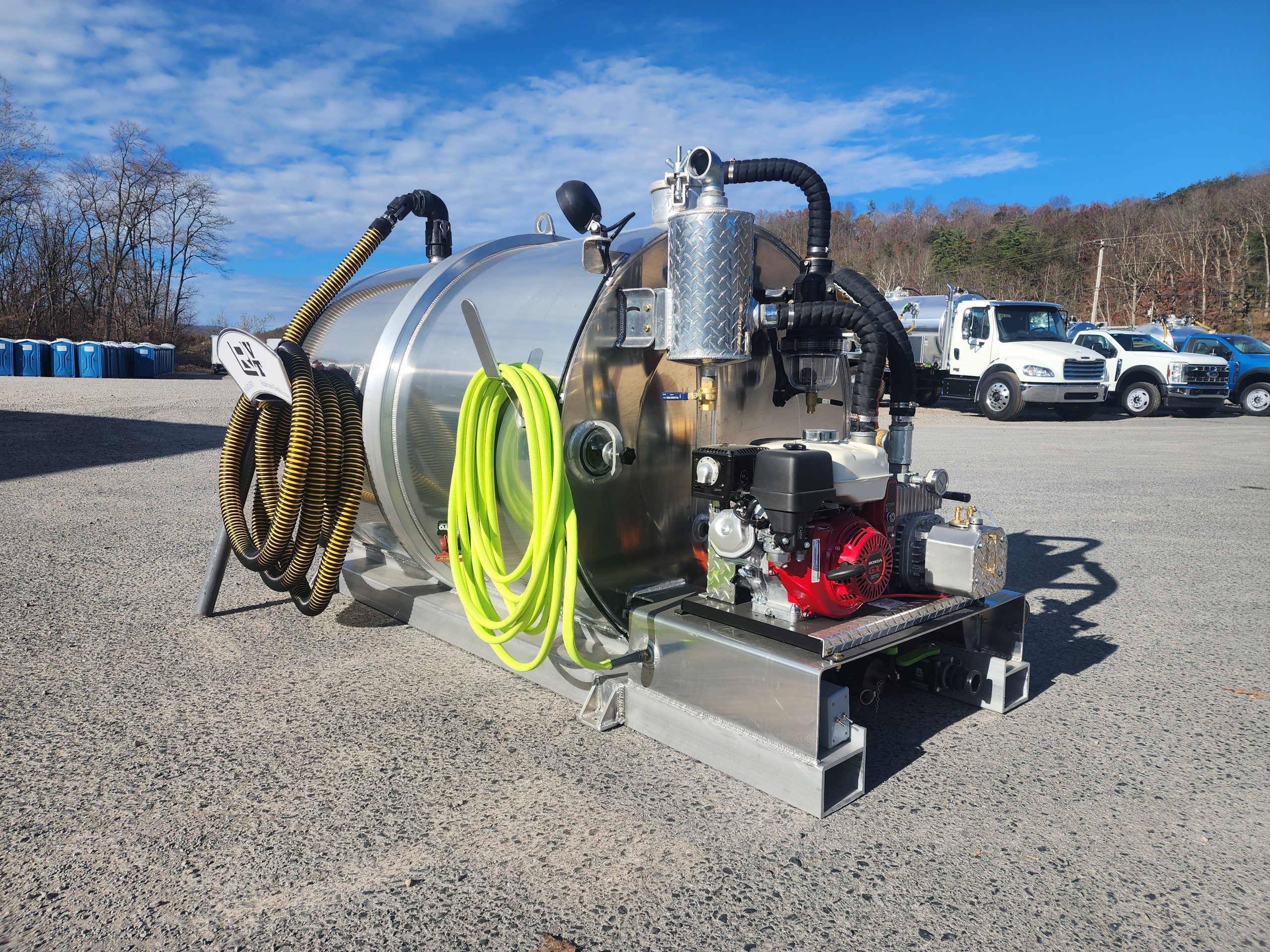

The SC (“Soup Can”) Series from Robinson Vacuum Tanks offers both single-compartment and two-compartment models. Manufactured from aluminum, this tank can be configured with your choice of five stock vacuum pumps; additional options include a rear engine pump or side engine pump for flatbeds. With their compact design, most SC Series units can be also be configured with the tank transverse.
SC Series
| Tank size | |
|---|---|
| Material |
The SC Series Slide-In Vacuum Tanks are available in three configurations (rear engine mount, side engine mount, and transverse mount) with tank capacities of 300, 450, 600, 700 (transverse only) and 800 gallons.
SC Series – Rear Engine Mount
| Model | Description |
| SC300-1C-RE-01-01 | 300 Gallon, single comp, standard features |
| SC300-2C-RE-01-01 | 200 Waste x 100 fresh, two comp, standard features |
| SC450-1C-RE-01-01 | 450 Gallon, single comp, standard features |
| SC450-2C-RE-01-01 | 300 Waste x 150 fresh, two comp, standard features |
| SC600-1C-RE-01-01 | 600 Gallon, single comp, standard features |
| SC600-2C-RE-01-01 | 400 Waste x 200 fresh, two comp, standard features |
| SC800-1C-RE-01-01 | 800 Gallon, single comp, standard features |
| SC800-2C-RE-01-01 | 540 Waste x 260 fresh, two comp, standard features |
SC Series – Side Engine, Conventional Mount
| Model | Description |
| SC300-1C-RE-01-01 | 300 Gallon, single comp, standard features |
| SC300-2C-RE-01-01 | 200 Waste x 100 fresh, two comp, standard features |
| SC450-1C-RE-01-01 | 450 Gallon, single comp, standard features |
| SC450-2C-RE-01-01 | 300 Waste x 150 fresh, two comp, standard features |
| SC600-1C-RE-01-01 | 600 Gallon, single comp, standard features |
| SC600-2C-RE-01-01 | 400 Waste x 200 fresh, two comp, standard features |
| SC800-1C-RE-01-01 | 800 Gallon, single comp, standard features |
| SC800-2C-RE-01-01 | 540 Waste x 260 fresh, two comp, standard features |
SC Series – Side Engine, Transverse Mount
| Model | Description |
| SC300-1C-TV-01-01 | 300 Gallon, single comp, standard features |
| SC300-2C-TV-01-01 | 200 Waste x 100 fresh, two comp, standard features |
| SC450-1C-TV-01-01 | 450 Gallon, single comp, standard features |
| SC450-2C-TV-01-01 | 300 Waste x 150 fresh, two comp, standard features |
| SC600-1C-TV-01-01 | 600 Gallon, single comp, standard features |
| SC600-2C-TV-01-01 | 400 Waste x 200 fresh, two comp, standard features |
| SC700-1C-TV-01-01 | 700 Gallon, single comp, standard features |
| SC700-2C-TV-01-01 | 480 Waste x 220 fresh, two comp, standard features |
Notes:
Any SC single compartment model deletes the following items: Wash down hose and spray nozzle, 12v wash down pump, bucket fill, garden hose hook, sight tube, vent, strainer, fresh plumbing.
Transverse, side engine tanks come standard with dual service prep by including right side hose hooks for both suction hose and washdown hose (not included), and a 3” top nipple with cap for waste inlet.
Additional Options
- Masport HXL2V (76 CFM) direct driven by Honda 5.5 HP gas motor, electric start
- Masport HXL3V (106 CFM) direct driven by Honda 9 HP gas motor, electric start
- Conde SDS 6 (115 CFM) belt driven by Honda 9 HP gas motor, electric start
- Conde SDS 6 (115 CFM) direct driven by Honda 9 HP gas motor, electric start
- Conde SDS 12 (180 CFM) belt driven by Honda 13 HP gas motor, electric start
- Conde Super 6 (70 CFM) belt driven by 6 HP Hatz diesel motor, electric start
- Conde SDS 6 (115 CFM) belt driven by 10 HP Hatz diesel motor, electric start
- Conde SDS 12 (180 CFM) belt driven by 10 HP Hatz diesel motor, electric start
- 2” x 50’ Tigertail hose with right angle valve and wand
- 2” full port straight valve with 30” schedule 80 PVC wand (replaces 90° version)
- Change to 12v Shurflo Powertwin – (6.25 GPM Open flow, 45 PSI Demand switch)
- Replace incandescent work light with LED
