| Capacity | 450 |
| Material | Aluminum |
| Make | Robinson Vacuum Tanks Inc |
| Tank (general) |

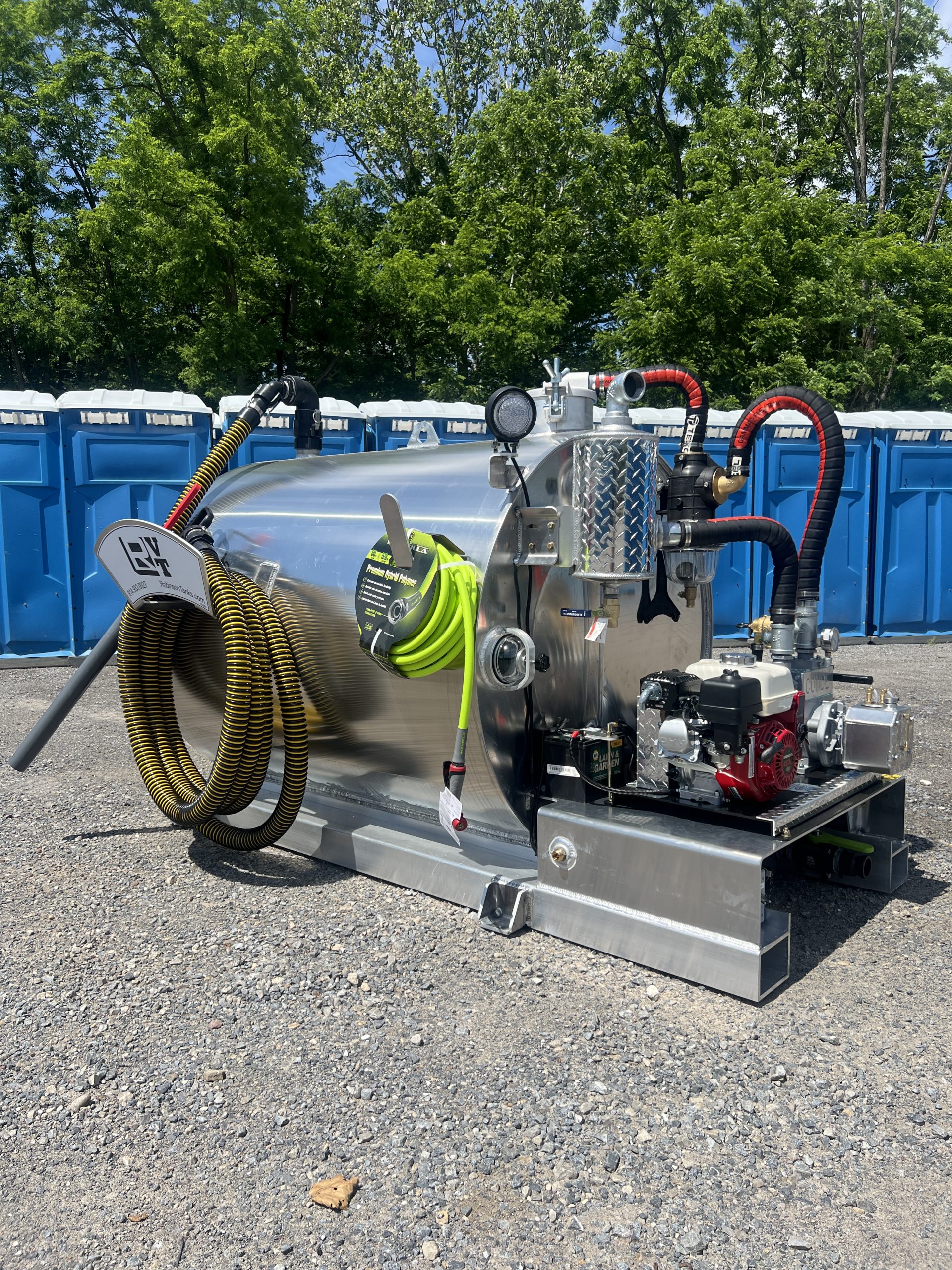

- 450 Gallon aluminum slide-in vacuum tank
- “Tank inside a tank” model. Fresh water compartment is wrapped by waste compartment. Both compartments run end to end providing 100% weight balance (see drawing for details)
- 300 gallons of waste, 150 gallons of fresh water
- Vacuum pump/engine compartment located on end of the tank (RE – Rear Engine)
- Full-length fork lift pockets
|
| Waste Compartment |
- 300 Gallon capacity
- 8″ diameter x 2″ hose barb primary moisture trap
- (1) Top load inlet with quick disconnect, 30′ Tigertail suction hose and 2″ valve/wand
- (2) 5″ sight glasses
- (1) 3″ Discharge
- Masport HXL2V or Conde Super 6 vacuum pump driven by gas engine (TBD based on availability)
|
| Fresh Compartment |
- 150 Gallon capacity
- (1) 2″ fill/vent
- (1) Sight tube
- (1) 2″ bucket fill
- (1) 12vdc 6.0 GPM Flojet washdown pump
- (1) 50′ x 5/8″ Washdown hose with spray nozzle
|
