Slide-In Tank: SC600-2C-RE, 600 Gallon two compartment

General Description

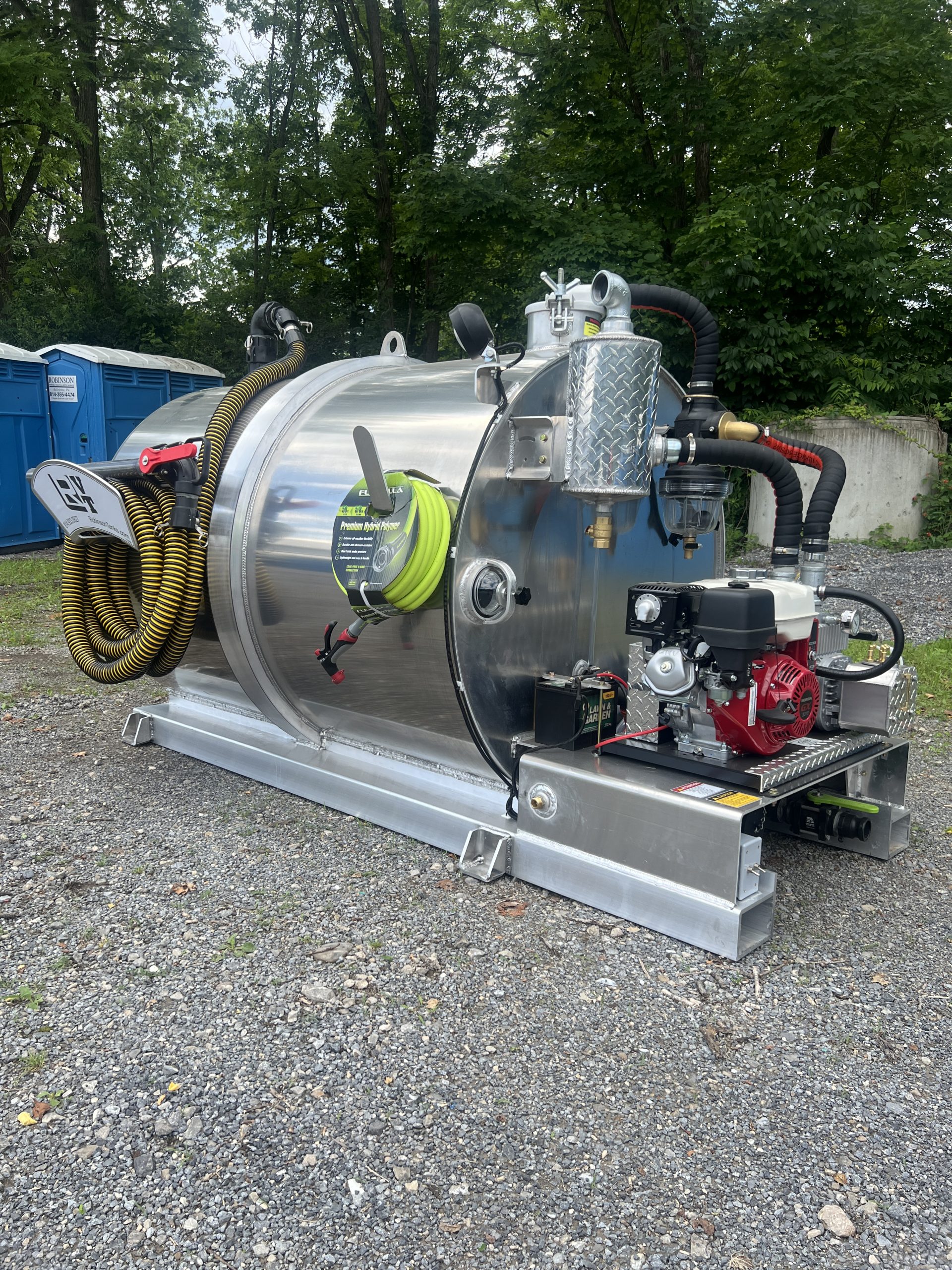

600 Gallon aluminum slide-in vacuum tank
"Tank inside a tank" model. Fresh water compartment is wrapped by waste compartment. Both compartments run end to end providing 100% weight balance (see drawing for details)

400 gallons of waste, 200 gallons of fresh water

Vacuum pump/engine compartment located on end of the tank (RE – Rear Engine)
Full-length fork lift pockets

Waste Compartment

8" diameter x 2" hose barb primary moisture trap
(1) Top load inlet with quick disconnect, 30' Tigertail suction hose and 2" valve/wand
(2) 5" sight glasses
(1) 3" Discharge
Masport HXL3V or Conde SDS 6 vacuum pump driven by gas engine (TBD based on availability)

Fresh Compartment

200 Gallon capacity
(1) 2" fill/vent
(1) Sight tube
(1) 2" bucket fill
(1) 12vdc 6.0 GPM Flojet washdown pump
(1) 50' x 5/8" Washdown hose with spray nozzle

Material

Aluminum

Make

Robinson Vacuum Tanks Inc

Tank Size

600

Condition

New
